Điều khiển động cơ bước dùng 89S52

Bài viết này muốn cho các bạn hiểu rõ về động cơ bước và hoạt động của nó dựa trên VĐK 8051
- Hoạt động của động cơ bước:
    + Full-step

  + Half- step

- Mạch điều khiển:

 +

+ Mạch nguyên lý

+ Mạch nguồn

+ Nút nhấn

+ Mạch in

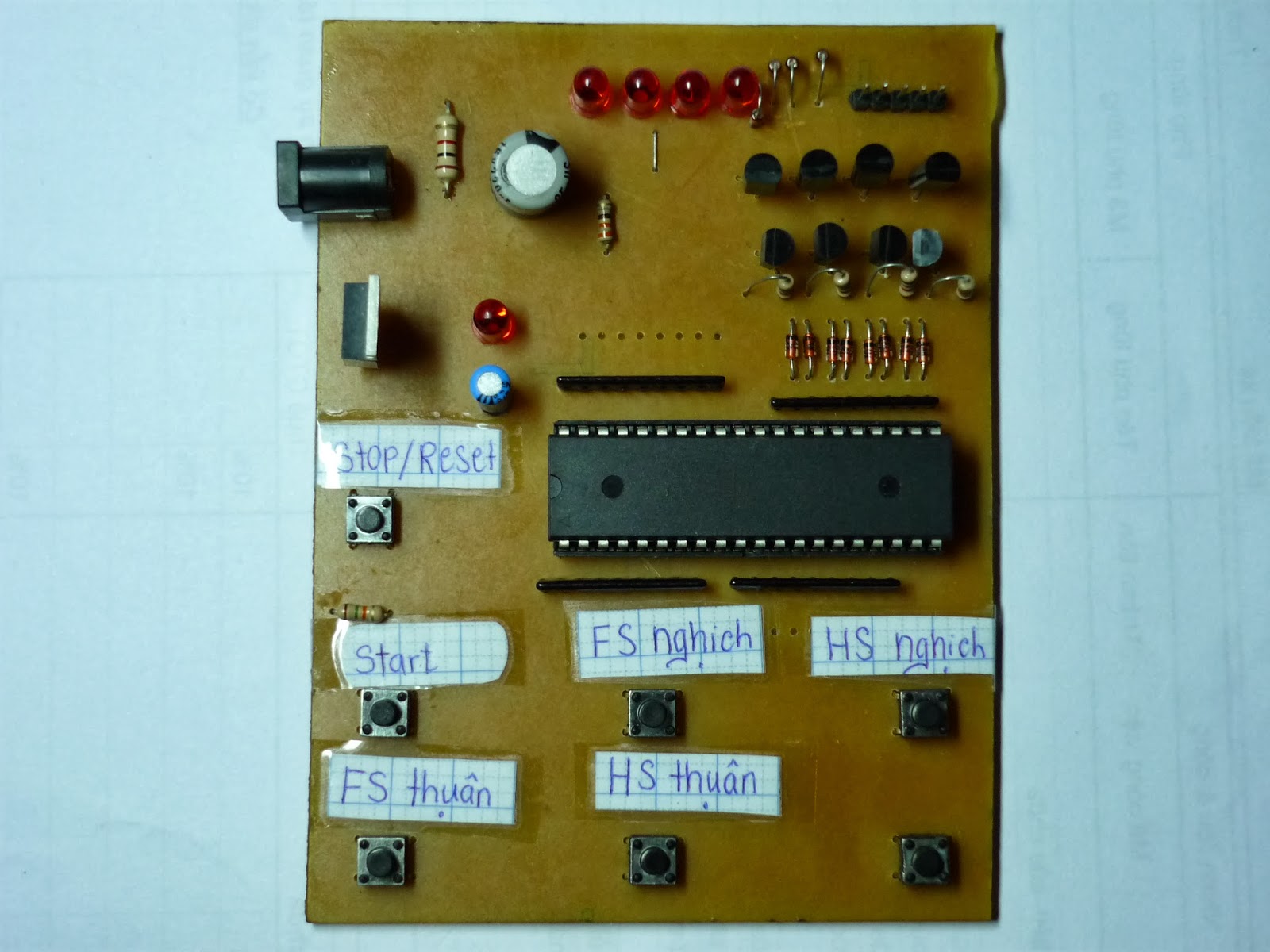

+ Thành phẩm

CHƯƠNG TRÌNH HOẠT ĐỘNG

;-----------------------------------------------------------------------------------------------------------------

; Chuong trinh dieu khien dong co buoc -6 nut nhan:

;   +Nhan START de khoi dong chuong trinh hoat dong

;           + Nhan  STOP (nut Reset cua vi dieu khien) de   dong co  buoc

;           + Nhan thi dong co quay"1 buoc hay 1/2 buoc "phu thuoc theo su lua chon la haftstep hay fullstep

;           + Nhan lien tuc dong co quay lien tuc tuy thuoc vao che do chon la haftstep hay fullstep

;---------------------------------------------------------------------------------------------------------

ORG 00H



                        start                 equ      p1.0

                        fullthuan          equ      p1.1

                        fullnghich        equ      p1.2

                        haftthuan         equ      p1.3

                        haftnghich       equ      p1.4



                        STEPPER     equ p2



MAIN:

       mov A,#00000000B                              ; NAP TRẠNG THÁI ĐẦU ĐỘNG CƠ BƯỚC

       mov STEPPER,A                                  ; XUẤT RA ĐỘNG CƠ

       mov  R0,#0                                             ; GẮN BIẾN

;================================================================

KIEMTRAPHIM:

;-------------------

            nutstart:  mov r5,#50

                        a0:  jb start,nutso1

                                       djnz r5,a0

                                                mov R0,#1



   nutso1:   mov r5,#100

        a1:           jb fullthuan,nutso2

            djnz r5,a1

                                    mov R0,#2

;-------------------

   nutso2:         mov r5,#100

                a2:   jb fullnghich,nutso3

                        djnz r5,a2

                        mov R0,#3





;-------------------

            nutso3:            mov r5,#100

                        a3:       jb haftthuan ,nutso4

                                    djnz r5,a3

                         mov R0,#4



;-------------------

            nutso4:            mov r5,#100

            a4: jb haftnghich,sosanh

                        djnz r5,a4

                        mov R0,#5



;================================================================

            sosanh:

;-----------------------------------------------------

batdau:

            cjne R0,#1,quayfullthuan                       ;  CHUONG TRINH NUT START

                                                mov A,#00000011B

                                                acall quay

                                                mov R0,#0



;---------------------------------------------------

quayfullthuan:



      cjne R0,#2,quayfullnghich

            rl A

            rl A

            acall quay

            mov  R0,#0

;-------------------

quayfullnghich:



      cjne R0,#3,quayhaftthuan

            rr A

            rr A

            acall quay

        mov  R0,#0

;-------------------

quayhaftthuan:



                        cjne R0,#4,quayhaftnghich

                        rl A

                        acall quay

                        mov  R0,#0

;-------------------

quayhaftnghich:



                        cjne R0,#5,quit

                        rr A

            acall quay

            mov  R0,#0

;-------------------

quit:

        ajmp KIEMTRAPHIM

                        ret

;================================================================

quay:

               acall delay

       mov  STEPPER,A

       PUSH ACC

       call delay10ms

       POP ACC

       ret



;================================================================

;******  TAO THOI GIAN TRE KHOANG 200mS - TIME 0 - MODE1

delay:

       push 00H

       mov R0,#2

       mov TMOD,#01H

            loop2:

       mov TH0,#HIGH(-50000)

       mov TL0,#LOW(-50000)

       setb TR0

       jnb TF0,$

       clr TR0

       clr TF0

       djnz R0,loop2

       pop 00H

       ret

;=================THOI GIAN DELAY DU DE TAT TRANG THAI LED TRUOC ;================================DO ============================

delay10ms:

                        mov R5,#100

del1:    mov R6,#048

                        djnz R6,$

                        djnz R5,del1

                        ret

end
